SATFormer

Introduction

[paper]

Title: SATformer: Transformer-Based UNSAT Core Learning

Authors: Zhengyuan Shi and Min Li and Yi Liu and Sadaf Khan and Junhua Huang and Hui-Ling Zhen and Min jie Yuan and Qiang Xu

Abstract: This paper introduces SATformer, a novel Transformer-based approach for the Boolean Satisfiability (SAT) problem. Rather than solving the problem directly, SATformer approaches the problem from the opposite direction by focusing on unsatisfiability. Specifically, it models clause interactions to identify any unsatisfiable sub-problems. Using a graph neural network, we convert clauses into clause embeddings and employ a hierarchical Transformer-based model to understand clause correlation. SATformer is trained through a multi-task learning approach, using the single-bit satisfiability result and the minimal unsatisfiable core (MUC) for UNSAT problems as clause supervision. As an end-to-end learning-based satisfiability classifier, the performance of SATformer surpasses that of NeuroSAT significantly. Furthermore, we integrate the clause predictions made by SATformer into modern heuristic-based SAT solvers and validate our approach with a logic equivalence checking task. Experimental results show that our SATformer can decrease the runtime of existing solvers by an average of 21.33%.

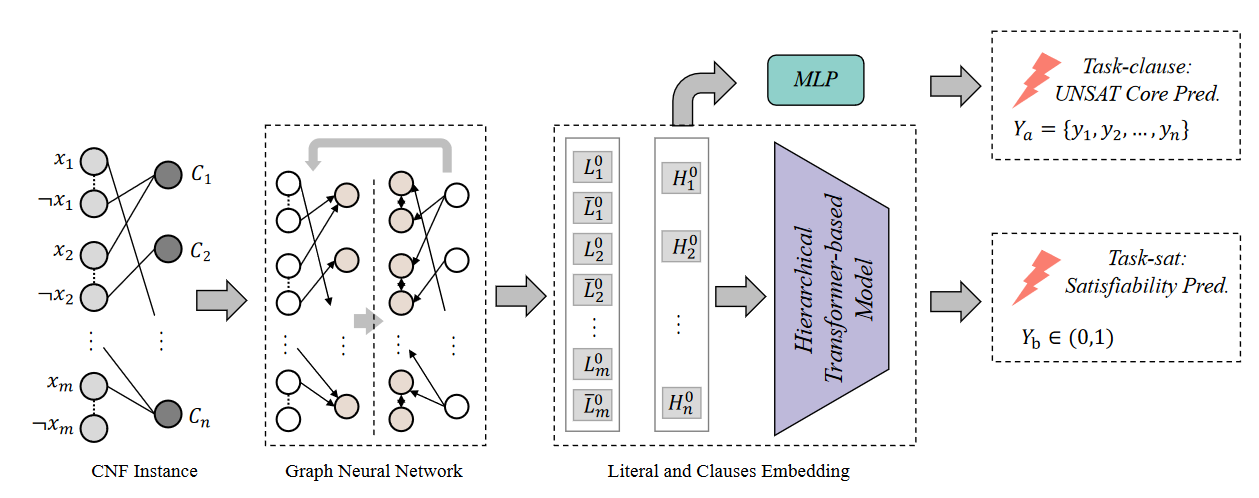

../../../_images/satformer.png

Config

dataset_name: neurosat
load_split_dataset: True
feature_type: all_one
task: satisfiability
task_type: lcg
task_level: graph
load_field: ["label:float"]
dataset_path: ./dataset/my_3_sat_1000

model_settings:
  model: satformer
  input_size: 1
  hidden_size: 128
  output_size: 1
  dropout_ratio: 0
  loss: binary_cross_entropy
  num_fc: 3
  num_round: 10
  dropout_ratio: 0
  window_size: 4
  hierarchical_level: 4
  num_head: 8
  pooling: max
  is_sat_weight: 1
  unsat_core_weight: 1
  sigmoid: True

scheduler_settings:
  scheduler: ReduceLROnPlateau
  patience: 10
  factor: 0.5
  mode: min

# train settings
valid_metric: acc
epochs: 100
lr: 1e-4
weight_decay: 1e-10
device: cuda:4
split_ratio: [0.6, 0.2, 0.2]
batch_size: 32

#log settings
log_file: ./log/satformer.log
