NeuroCore

Introduction

[paper]

Title: Guiding High-Performance SAT Solvers with Unsat-Core Predictions

Authors: Daniel Selsam and Nikolaj S. Bj{o}rner

Abstract: The NeuroSAT neural network architecture was introduced in [37] for predicting properties of propositional formulae. When trained to predict the satisfiability of toy problems, it was shown to find solutions and unsatisfiable cores on its own. However, the authors saw “no obvious path” to using the architecture to improve the state-of-the-art. In this work, we train a simplified NeuroSAT architecture to directly predict the unsatisfiable cores of real problems. We modify several state-of-the-art SAT solvers to periodically replace their variable activity scores with NeuroSAT’s prediction of how likely the variables are to appear in an unsatisfiable core. The modified MiniSat solves 10% more problems on SATCOMP-2018 within the standard 5,000 second timeout than the original does. The modified Glucose solves 11% more problems than the original, while the modified Z3 solves 6% more. The gains are even greater when the training is specialized for a specific distribution of problems; on a benchmark of hard problems from a scheduling domain, the modified Glucose solves 20% more problems than the original does within a one-hour timeout. Our results demonstrate that NeuroSAT can provide effective guidance to high-performance SAT solvers on real problems.

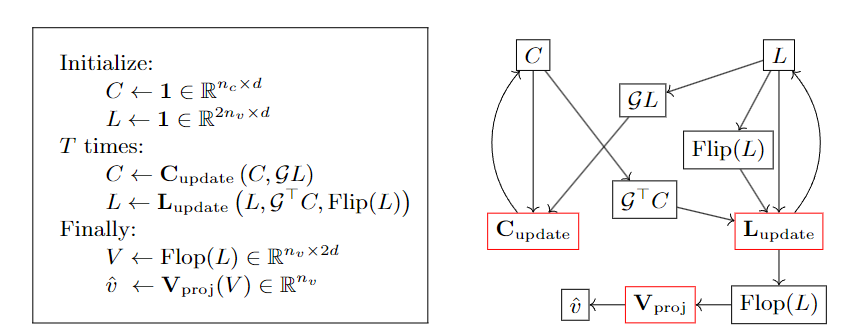

../../../_images/neurocore.png

Config

dataset_name: neurosat
load_split_dataset: True
feature_type: all_one
task: satisfiability
task_type: lcg
task_level: graph
load_field: ["label:float"]
dataset_path: ./dataset/my_3_sat_1000

model_settings:
  model: neurocore
  input_size: 1
  hidden_size: 128
  output_size: 1
  loss: binary_cross_entropy
  num_fc: 3
  num_round: 32
  dropout_ratio: 0
  sigmoid: True
  pooling: mean

scheduler_settings:
  scheduler: ReduceLROnPlateau
  patience: 10
  factor: 0.5
  mode: min

# train settings
valid_metric: acc
epochs: 100
lr: 1e-4
weight_decay: 1e-10
device: cuda:5
split_ratio: [0.6, 0.2, 0.2]
batch_size: 32
save_model: ./save_model/neurocore.pt

#log settings
log_file: ./log/neurocore.log
